Cast Trays for heat treatment furnace
Product Name: Cast Trays
Material: 1.4849
Dimensions: 546*370*50 mm
Single Weight: 29kg
Manufacturing Process: Precision Casting

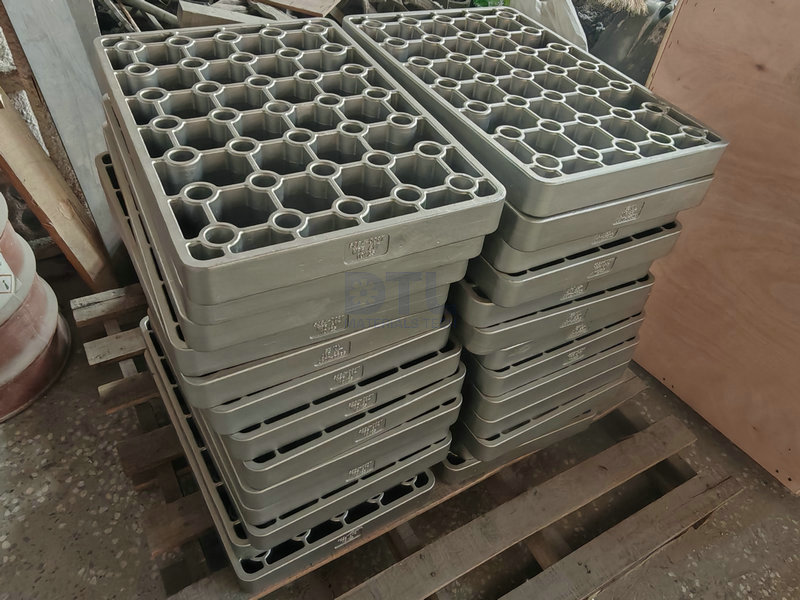

The image shows a Cast Trays from a recently completed heat treatment fixture. Its main dimensions are 546*370*50 mm. The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated. Made of 1.4849, it is manufactured using a silica sol precision casting process. The heat treatment fixture includes a combination of parts such as a Cast Trays, grids, column, and spacer tube. Precision casting of this fixture offers advantages such as precise dimensions, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
