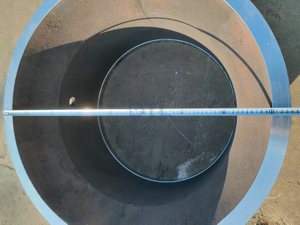

Static Casting Lining Product Name: Lining Material: ASTM A148 - Grade 150/135 Dimensions: Φ839*445 mm Single Weight: 256 Kg Manufacturing Process: Static Casting The picture shows a two-piece lining completed this month. The dimensions are Φ839*445mm, the material is ASTM A148 - Grade 150/135, and it was produced using a static casting process. After heat treatment, the hardness requirement is 440-515 HB. The lining is used in combination and requires excellent wear resistance. This batch of linings has passed other tests conducted by the quality inspection department and has been packaged and shipped.
Cast Trays for heat treatment furnace Product Name: Cast Trays Material: 1.4849 Dimensions: 546*370*50 mm Single Weight: 29kg Manufacturing Process: Precision Casting The image shows a Cast Trays from a recently completed heat treatment fixture. Its main dimensions are 546*370*50 mm. The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated. Made of 1.4849, it is manufactured using a silica sol precision casting process. The heat treatment fixture includes a combination of parts such as a Cast Trays, grids, column, and spacer tube. Precision casting of this fixture offers advantages such as precise dimensions, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.

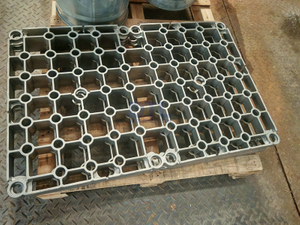

Precision Casting Tray Product Name: Cast Tray Material: 1.4852 Dimensions: 900*600*45 mm Single Weight: 46kg Manufacturing Process: Precision Casting The image shows a recently completed heat treatment fixture, including a Cast Tray and Posts. The main dimensions are 900*600*45 mm. The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated. Made of 1.4852 stainless steel using a silica sol precision casting process, this heat treatment fixture comprises Cast Trays, grates, Posts, and spacer tubes. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
Precision Casting Fan Product Name: Fan Material: 1.4852 Dimensions: ⌀600*500mm Single Weight: 20kg Manufacturing Process: Precision Casting The picture shows a fan that has passed inspection. It is made of 1.4852 silicide, with dimensions of ⌀600*500mm and a weight of 20kg. It is manufactured using silica sol precision casting technology and is mainly used in heat treatment furnaces to ensure a uniform atmosphere. It has passed balance tests and various inspections and is now packaged and shipped. The customer has been ordering fans for a long time, primarily for use in heat treatment furnaces.
Heat Treatment Fixture Product Name: Heat Treatment Fixture Material: 1.4849 Dimensions: 1500*900*880 mm Single Weight: 466kg Manufacturing Process: Precision Casting The image shows a recently completed heat treatment fixture, measuring 1500*900*880 mm. The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated. Made of 1.4849 nitrile steel using silica sol precision casting, this heat treatment fixture comprises components such as trays, grates, columns, and spacers. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.

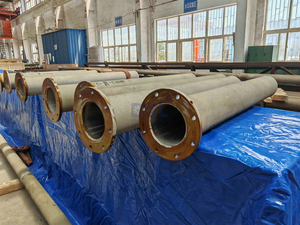

Straight Radiant Tube Product Name: Straight Radiant Tube Material: 1.4852 Dimensions: Φ200*2850mm/Φ200*2075mm Weight: 129kg/97kg Manufacturing Process: Centrifugal Casting The image shows a recently completed straight radiant tube, with dimensions of Φ200*2850mm/Φ200*2075mm, a weight of 129kg/97kg, and made of 1.4852 material. The radiant tube body is centrifugally cast. It has passed inspection and meets customer requirements, and has been shipped. Centrifugal casting is the main production process for radiant tubes, capable of producing radiant tubes of various diameters. We accept long-term orders for radiant tubes of different sizes; production can be based on provided drawings or custom orders.
Heat Treatment Fixture Assembled Product Name: Heat Treatment Fixture Material: 2.4849 Dimensions: 600*400*H mm Unit Weight: / Manufacturing Process: Precision Casting The image shows a recently completed heat treatment fixture. The dimensions are 600*400*H mm, with the height determined by the number of stacked layers and the number of workpieces to be heat treated. Made of 2.4849 material using silica sol precision casting, this heat treatment fixture comprises components such as a tray, grate, column, and mesh basket. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
Recuperators for Recuperative Burners Product Name: Burner Material: 1.4848 Dimensions: Φ158*758mm Single Weight: 18.5kg Manufacturing Process: Precision Casting The image shows a recently completed batch of burners. The dimensions are Φ158*758mm, the weight is approximately 18.5kg, and the material is 1.4848. They were primarily manufactured using precision casting technology and are used in conjunction with radiant tubes. Customers ordered burners and accessories of various specifications and sizes. After passing all tests and meeting customer requirements, they have been packed and shipped.
Retort Assembled, Radiant Tube Product Name: Retort Assembled, Radiant Tube Material: 1.4848 / AISI 310S Dimensions: Φ226*1932mm, Φ240*2055mm Weight: 122kg, 172kg Manufacturing Process: Centrifugal Casting, Finished Product Processing The images show the Retort Assembled and U-shaped radiant tube completed this month, mainly manufactured using centrifugal casting and finished product welding processes. The Retort Assembled dimensions are Φ226*1932mm, weighing approximately 122kg, and both are made of 1.4848 / AISI 310S. The radiant tube dimensions are Φ240*2055mm, weighing approximately 172kg, and made of AISI 310S. The customer has been ordering Retort Assembleds and radiant tubes of various specifications and sizes for many years. After thorough inspection, they meet the customer's requirements and have been packed and shipped.
