Charging Fixtures Assembled with Base Tray, Cross Beams, Post, Core Shaft

Charging Fixtures Assembled with Base Tray, Cross Beams, Post, Core Shaft

Product Name: Cross Beam, Post, Core Shaft

Material: 1.4849

Size: 490 * 30 * 36mm/365 * 40 * 65mm/281 * 25 * 25mm/40 * 725

Single weight: 0.5~2kg

Production process: precision casting

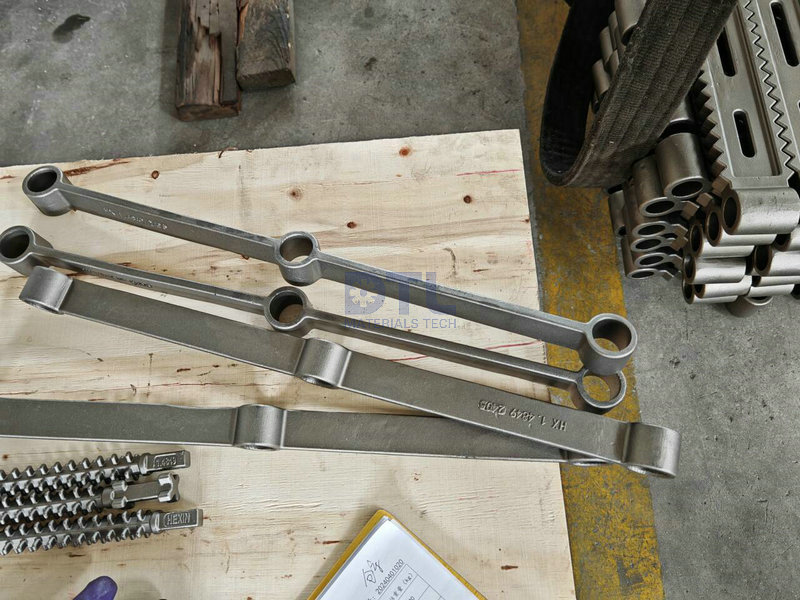

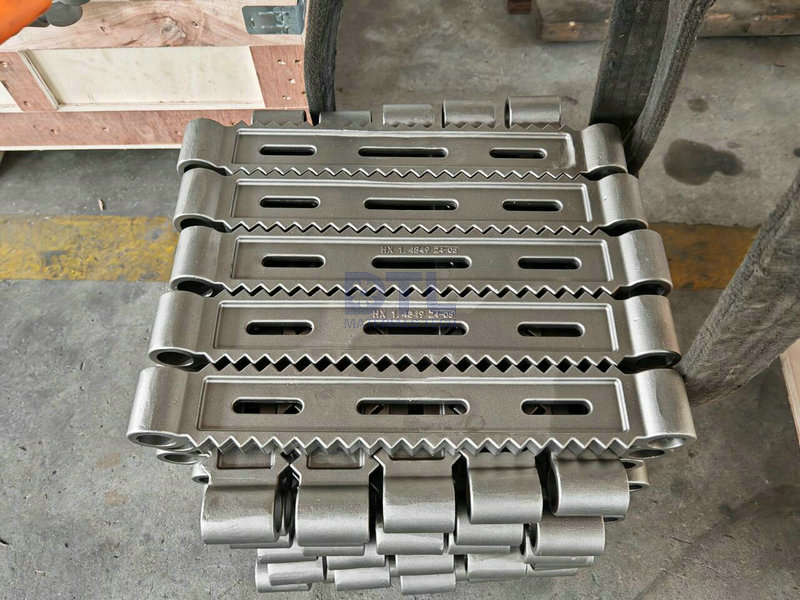

The picture shows a batch of Base Tray, Cross Beams, Post, Core Shaft, etc. that have completed inspection.

The material is 1.4849, and the size specifications are 490*30*36mm/365*40*65mm/281*25*25mm/40*725mm,

with a weight of 0.5-2kg.

Adopting the silica sol precision casting process,

it is assembled and used together with the bottom tray, middle grate, and column.

Our company specializes in producing various heat treatment fixtures, material baskets, trays, etc.,

which are used to hold heat-treated workpieces.

The customer has long-term orders for various specifications of pallet tooling,

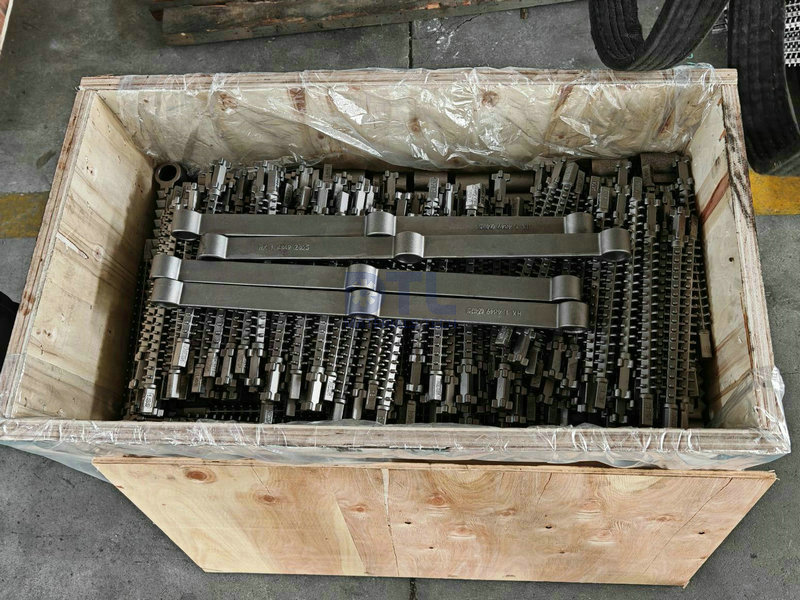

which have been inspected and qualified in all aspects, and have been packed and shipped.
