Product Name: Lift Fixture for Pit Furnace

Material: 1.4849/AISI 310S

Size: ⌀ 1800 * 1265mm/⌀ 2000 * 1270mm

Unit weight: 894kg/558kg

Production process: precision casting

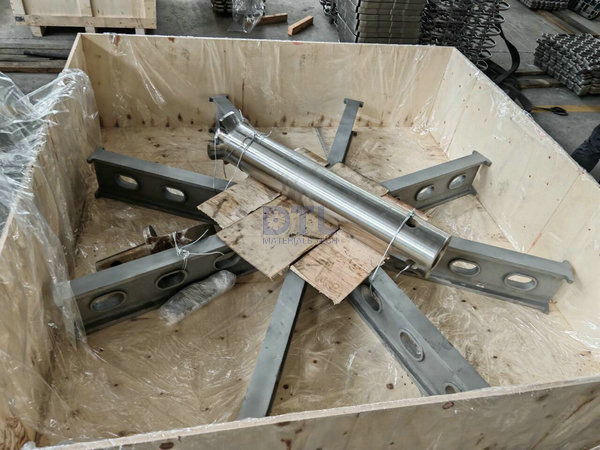

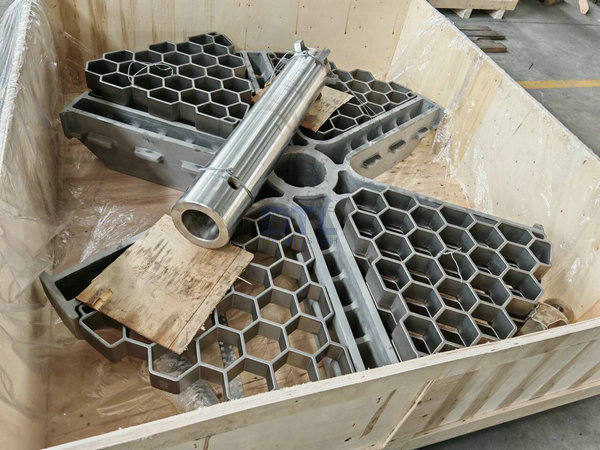

The picture shows a batch of Lift Fixture for Pit Furnace used for heat treatment that have completed inspection.

The material is 1.4849/AISI 310S, and the size specifications are all ⌀ 1800 * 1265mm/⌀ 2000 * 1270mm.

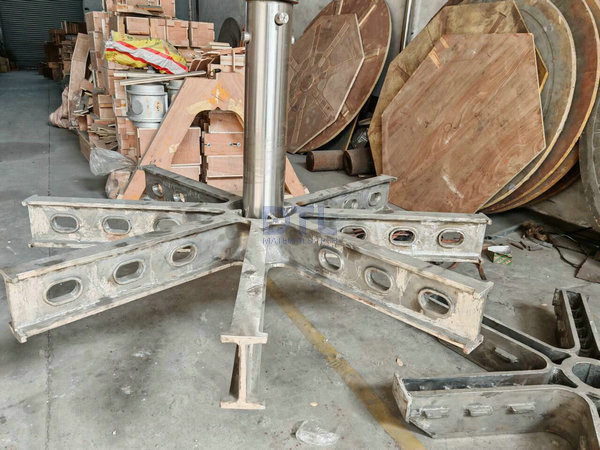

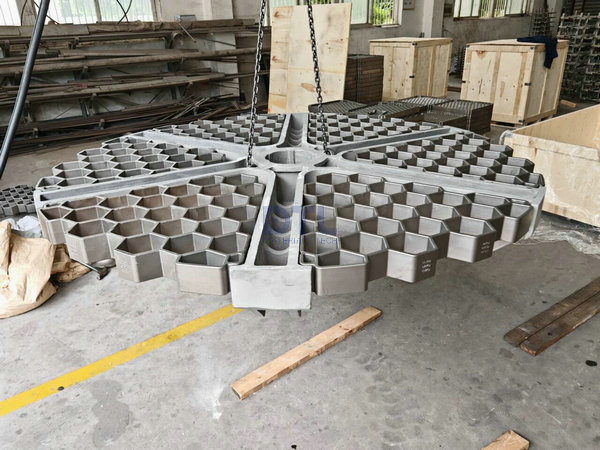

The assembly methods are different, one structure is a combination of hangers and separators, and the other only has hangers,

both made of forged AISI 310S material. The weights are 894kg/558kg respectively.

Adopting the silica sol precision casting process, it is mainly used for the installation of workpieces during heat treatment in well furnaces.

The customer has long-term orders for lifting equipment of different specifications and sizes,

which have been inspected and qualified in all aspects, and have been packed and shipped.
