Static Casting Lining

Static Casting Lining

Product Name: Lining

Material: ASTM A148 - Grade 150/135

Dimensions: Φ839*445 mm

Single Weight: 256 Kg

Manufacturing Process: Static Casting

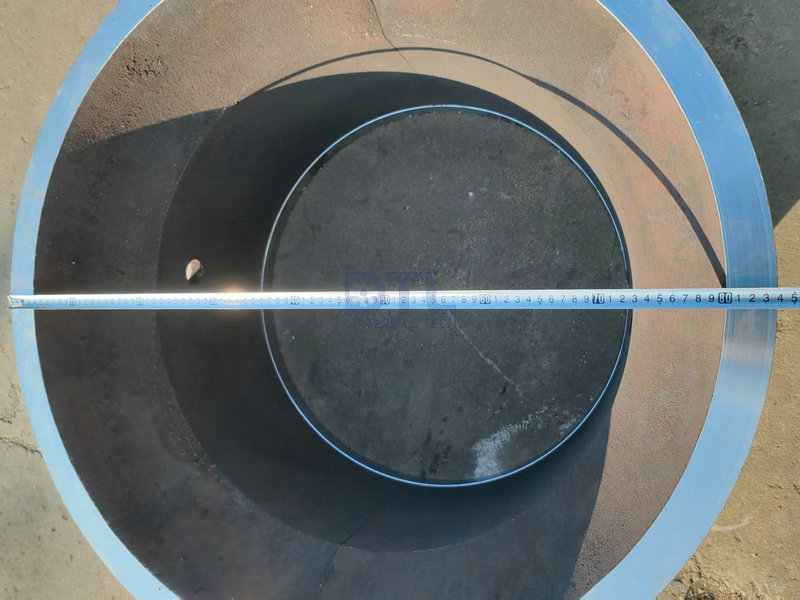

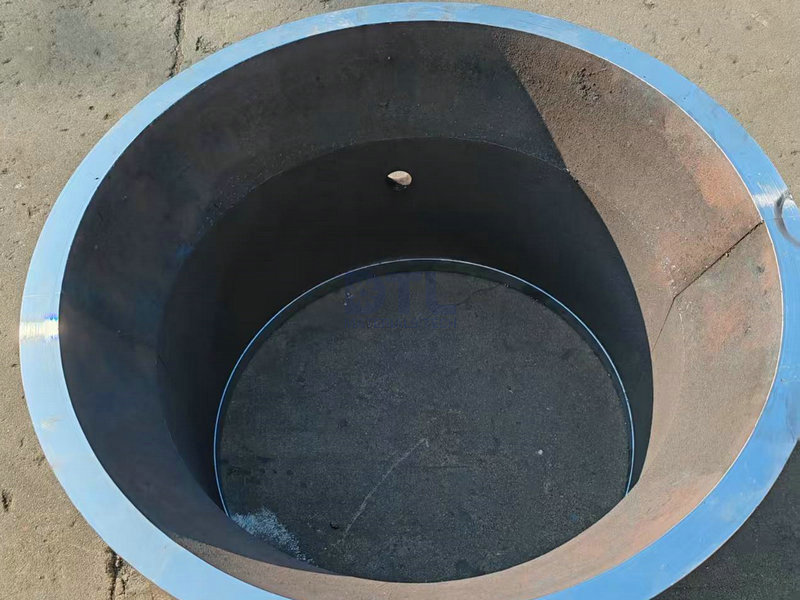

The picture shows a two-piece lining completed this month. The dimensions are Φ839*445mm, the material is ASTM A148 - Grade 150/135, and it was produced using a static casting process. After heat treatment, the hardness requirement is 440-515 HB. The lining is used in combination and requires excellent wear resistance. This batch of linings has passed other tests conducted by the quality inspection department and has been packaged and shipped.
