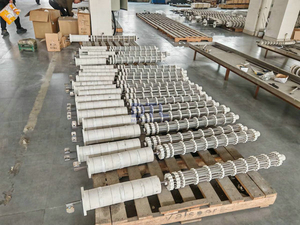

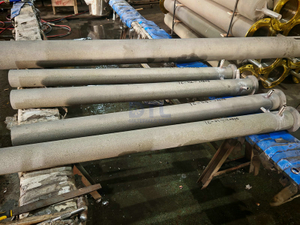

Electric Heating Radiant Tube Product Name: Electric Heating Radiant Tube Material: 1.4848/Cr20Ni80 Dimensions: Φ133*1280mm, Φ200*1243mm, Φ160*1286mm Weight: 17.2kg/44kg/28.5kg Production Process: Centrifugal Casting, Forming and Welding The picture shows a batch of electric heating Radiant tubes completed this month, including the Radiant tube shell and the electric heating core. The main dimensions are Φ133*1280mm, Φ200*1243mm, Φ160*1286mm. The material is 1.4848/Cr20Ni80, weighing approximately 17.2kg/44kg/28.5kg. The Radiant tubes are mainly produced by centrifugal casting and static casting processes, while the electric heating elements are mainly formed by welding. The trial installation is qualified, and it has passed all inspections. It is packed separately for shipment, and the customer is responsible for assembly.
Spiral Rod Left Product Name: Spiral Rod Left Material: 1.4852 Size: ∅144 * 5385 mm Weight: 152 kg Production Process: Precision Casting The picture shows the completed inspection order of the spiral rod. The material is 1.4852, the size specification is ∅144 * 5385 mm, and the weight is 152 kg. It was completed through precision casting. Subsequently, it underwent polishing treatment, size and material inspection processes, and the product quality is qualified. It has been packed and shipped. The spiral rod is divided into left and right, with opposite spiral directions. Our company has mature casting and processing experience. We can produce according to the drawing or design based on the on-site requirements.

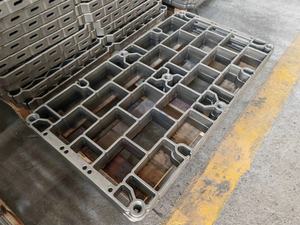

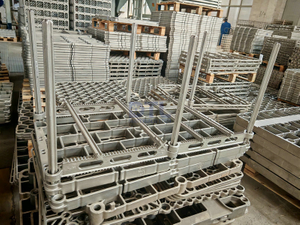

Heat Treatment Fixture Product Name: Heat Treatment Fixture Material: 2.4849 Dimensions: 900*600*580mm Weight: 130kg Manufacturing Process: Precision Casting The image shows a recently completed heat treatment fixture, measuring 900*600*580mm. Made of 2.4849 nitrile steel using silica sol precision casting, this heat treatment fixture comprises a combination of parts including a pallet, grate, and supporting beams and columns. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.

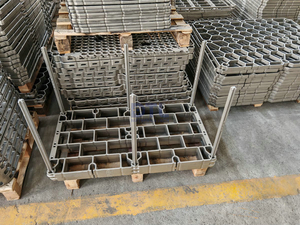

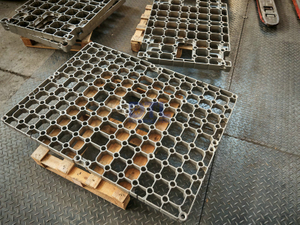

Tray, Carrier bar by Precision Casting Product Name: Tray, Carrier bar by Precision Casting Material: 1.4849 Dimensions: 890*490*40mm, 420*45*60mm Weight: 30kg, 2kg Production Process: Precision Casting The picture shows the recently produced precision cast trays and support beams with dimensions of 890*490*40mm and 420*45*60mm. The material is 1.4849 and they are produced by the precision casting process using silica sol. The trays and support beams are combination parts of heat treatment jigs and are assembled with other parts. The precision casting process for this structure has the advantages of precise dimensions and low deformation. After this batch of trays and support beams passed the inspection by the quality control department and were packaged for shipment.

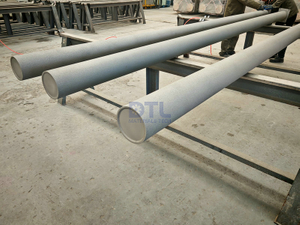

Straight Tube Radiant Tube Product Name: Straight Tube Radiant Tube Material: 1.4848 Size: Φ153 * 1650mm Weight: 68kg Production Process: Centrifugal Casting The picture shows the straight tube radiant tube recently completed in production. The size is Φ153 * 1650mm, the weight is 68kg, and the material is 1.4848. The main body of the radiant tube is cast by centrifugal method, and the tail is precisely cast. After inspection, it meets the customer's requirements and has been qualified for shipment. In the production process of the radiant tube, centrifugal casting is the main production process, which can meet the production of radiant tubes of various diameters.

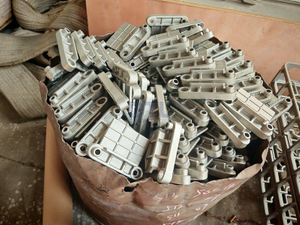

Chain Link by Coated Sand Process - Product Name: Chain Link Material: ASTM 128 - Grade B1 Size: 400*65*250mm Weight: 10 Kg Production Process: Coated Sand Process The picture shows a batch of link sections completed this month. The size specification is 400*65*250mm, the material is ASTM 128 - Grade B1, produced by the coated sand process. After heat treatment, the hardness requirement is 350-400HB. After passing other inspection experiments by the quality inspection department, they have been packed and shipped.

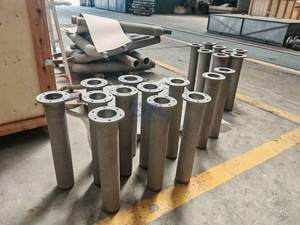

Recuperators and Radiant Tube for Recuperative Burners Product Name: Burner + Radiant Tube Material: 1.4852/1.4848 Dimensions: Φ128*728mm, Φ200*1640mm Weight: 18.2kg, 76kg Production Process: Precision Casting, Centrifugal Casting The picture shows a batch of recently completed orders for burners + Radiant tubes, with dimensions of Φ128*728mm, Φ200*1640mm, weighing approximately 18.2kg, 76kg. The material is 1.4852/1.4848. The burners are mainly produced using precision casting technology, while the Radiant tubes are produced using centrifugal casting technology. This batch of burners is used in conjunction with Radiant tubes. Customers ordered different specifications and sizes of burners and accessories. After various tests, they were found to be qualified and in line with customer requirements. They have been packed and shipped.
Cast Tube Supports for Petrochemical Product Name: Tube Support Material: ASTM A351 HK 40, A479 Gr 304 Size: 7440*300*364mm Weight: 1245 Kg Production Process: Sand Casting, Precision Casting Picture shows the petroleum industry tube support completed last month. The size specification is 7440*300*364mm. The material is ASTM A351 HK 40, A479 Gr 304. It is produced by sand casting and precision casting process. After passing other inspection experiments by the quality inspection department, it has been packed and shipped.

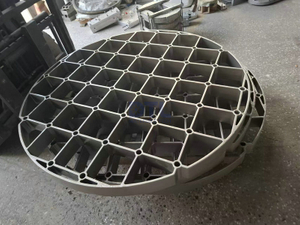

Investment Casting Base Tray Product Name: Investment Casting Base Tray Material: HR 120 Alloy Size: 48"x48"x1 1/2" Weight: 99 kg Production Process: Precision Casting The picture shows a recently produced precision-cast tray with the size specification of 48"x48"x1 1/2" and a weight of 99 kg. The material is HR 120 Alloy, which is produced using the silica sol gel precision casting process. The tray and the tooling are common supporting devices in heat treatment, used for supporting and fixing the heat-treated workpieces. After this batch of trays and tooling passed other inspection experiments by the quality inspection department and were qualified, they have been packed and shipped.
Recuperators for Recuperative Burners Product Name: Burner Material: 1.4832/1.4541 Dimensions: Φ265/Φ146*877mm Weight: 33.6kg Production Process: Precision Casting The image shows a recently completed order of burners. These units measure Φ265/Φ146*877mm, weigh approximately 33.6kg, and are made of 1.4832/1.4541. They are primarily manufactured using precision casting. This batch of burners is available in left and right sizes for use with radiant tubes. Customers can order burners and accessories of varying sizes and specifications. After comprehensive testing and meeting customer requirements, they have been packaged and shipped.
