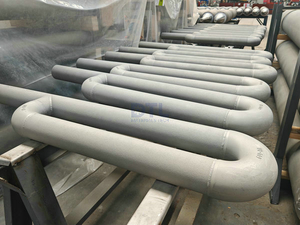

P-Type Radiant Tubes by Centrifugally Casting Product Name: P-type Radiant Tube Material: 1.4848 Size: 603.206.2046mm Unit weight: 149kg Production process: centrifugal casting+precision casting+welding+machining The picture shows the P-type Radiant tubes produced last week, with dimensions of 603.206.2046mm, made of 1.4848 heat-resistant steel, and a unit weight of 149kg. The main body adopts centrifugal casting technology, and the elbow adopts precision casting technology, which is welded as a whole. The customer ordered P-type Radiant tubes of different sizes and lengths, and after inspection, they meet the customer's requirements and have been shipped after passing the inspection.

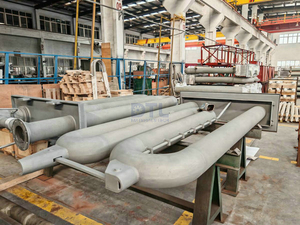

Centrifugally Cast W Radiant Heater Tubes Product Name: W-shaped Radiant Tube Material: GX40CrNiSi2520 1.4857 GNiCr28W Size: 550.1530.3211mm Single weight: 609kg Production process: centrifugal casting+precision casting+welding+machining The picture shows the W-shaped Radiant tube produced last week, with dimensions of 550.1530.3211mm and a weight of approximately 609kg. The main materials used are GX40CrNiSi2520, 1.4857, and GNiCr28W heat-resistant steel. The main body adopts centrifugal casting technology, the elbow adopts precision casting technology, the thermocouple, expansion joint and other purchased parts are welded as a whole. The customer has ordered Radiant tubes of this model specification multiple times, and after inspection, they meet the customer's requirements and have been shipped after passing the inspection.

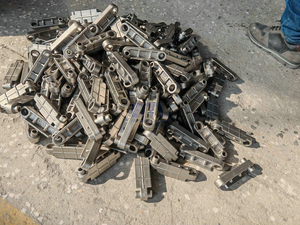

Conveyor Belt Chain Links by Precision Casting Product Name: Conveyor Belt Chain Links by Precision Casting Material: 1.4855 Size: 130.90.29/130.90.49mm Single weight: 0.5-0.8kg Production process: precision casting A batch of conveyor belt chain links recently produced in the picture, with individual chain link sizes ranging from 130.90.29-130.90.49mm, weights of approximately 0.5-0.8kg, and materials of 1.4855, using silica sol precision casting technology. The entire conveyor belt consists of 5 types of chain links, with high precision casting size accuracy. After polishing, it can be directly assembled and used, and comes with a core shaft and gasket. It is shipped in bulk and welded and assembled by the customer themselves.

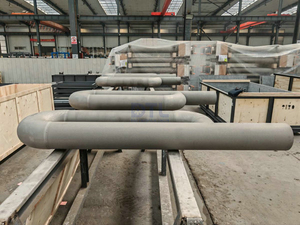

P-type Radiant Tubes by Centrifugally Casting Product Name: P-type Radiant Tubes by Centrifugally Casting Material: 1.4848 Size: 603.206.2054mm/406.126.1673mm Unit weight: 147kg/68kg Production process: centrifugal casting+precision casting+welding+machining The pictures show two types of P-type radiant tubes produced last week, with dimensions of 603.206.2054mm/406.126.1673mm respectively. Material 1.4848 heat-resistant steel, with a unit weight of 147kg/68kg. The main body adopts centrifugal casting technology, and the elbow adopts precision casting technology. The customer ordered P-type radiant tubes of different sizes and lengths, and after inspection, they meet the customer's requirements and have been shipped after passing the inspection.

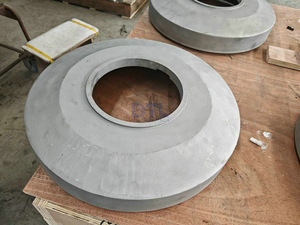

Spinner Disc Casting for Glasswool Fiberizing Product Name: Spinner Disc Casting for Glasswool Fiberizing Material: Co based alloy Size: Ø 450 * 102.5mm Single weight: 16.5kg Production process: Casting+Processing The picture shows a batch of Spinner Disc produced this month, using static casting and machining technology. The material is Co based alloy, with dimensions of Ø 450 * 102.5mm and a weight of approximately 16.5kg. It is a structure that we have jointly developed and improved with the customer. Compared with the original structure, the effect is excellent, and it has passed various inspections and meets the customer's requirements.

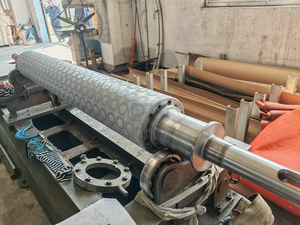

Embossing Roller for Patterned Glass Product name: Embossing Roller for Patterned Glass Material: 45# Size: OD195 * 2421mm Single weight: 329kg Production process: finished product processing The picture shows a recently completed glass embossing roller, with a main size of 195 * 2421mm, made of 45 # steel, weighing approximately 329KG. After the roller blank is processed, it is engraved and electroplated according to the customized pattern, and finally finished with precision machining. Our company has a long-term supply of Embossing Roller for Patterned Glass, with a complete range of pattern types, and can also customize patterns according to the pattern.

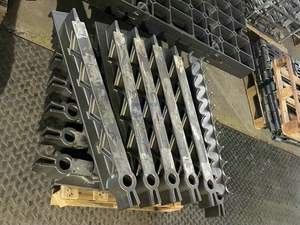

Static Casting Walking Beam for Heating Furnace Product name: Static Casting Walking Beam Material: HU Size: 803 * 102 * 118mm Single weight: 22kg Production process: precision casting The picture shows a batch of walking beams used for heat treatment after inspection, made of HU material, with dimensions of 803 * 102 * 118mm and a weight of 22kg. Adopting the silica sol precision casting process and undergoing post-processing, the product has excellent casting surface quality and precise dimensions. Customers have long ordered stepping beams of different specifications and sizes, which have been inspected and qualified in all aspects. They have been packed and shipped.

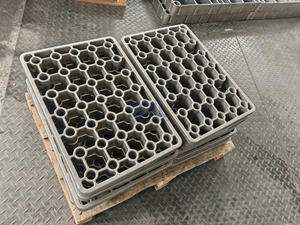

High Nickel and Chrome Alloy Cast Tray Product Name: Cast Tray Material: 1.4849 Size: 546*370*50mm Single weight: 29kg Production process: precision casting The picture shows a batch of cast trays that have completed inspection, with a material of 1.4849, dimensions of 546 * 370 * 50mm, and a weight of 29kg. We use silica sol precision casting technology, and the cast trays are mainly used for holding workpieces in heat treatment furnaces. Our company specializes in producing various heat treatment fixtures, cast baskets, cast trays, etc. Our customers have long-term orders for various specifications of heat treatment fixtures, which have been inspected and qualified in all aspects, and have been packed and shipped.

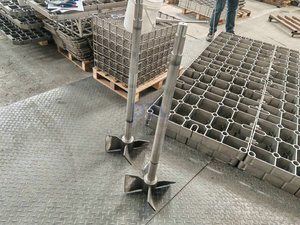

High Temperature Furnace Fans Product name: Furnace Fans Material: 1.4857 Size: Φ 320 * 1072mm Single weight: 30kg Production process: precision casting The picture shows the completed inspection of the Furnace Fans, with a material of 1.4857, a size specification of 320 * 1072mm, and a weight of 30kg. Produced using silica sol precision casting technology. After subsequent machining, dynamic balance detection and other processes, this fan is used in a heat treatment furnace: size DxRxC -1000x600x500mm, working temperature 950 ℃, flow rate: 18m3/min. After passing all inspections, it has been packed and shipped.

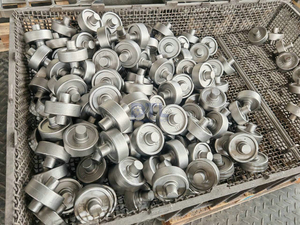

Roller Rails and Rollers for Heat Treatment Furnace Product name: Roller Rails Material: 1.4841 Size: Φ 88 * 82.5mm Single weight: 1.5 kg Production process: precision casting The picture shows a batch of Roller Rails that have completed inspection, with a material of 1.4841, a size specification of ± 88 * 82.5mm, and a weight of 1.5kg. Produced using silica sol precision casting technology. Roller Rails are mainly used in conjunction with guide rollers to transport items. According to the usage requirements, it can be processed or not processed. This batch has passed various inspections and has been packed and shipped.
