High-Temperature Furnace Roller for Heating Furnace Product Name: High-Temperature Furnace Roller texture of material: SUS 304 Size: ⌀ 152*2971.8mm Unit weight: 107kg The picture shows a batch of High-Temperature Furnace Roller for Heating Furnace produced this month, with dimensions of ⌀ 152 * 2971.8mm, made of SUS 304 material, weighing approximately 107kg, using static casting and centrifugal casting, and later machined. Excellent quality, passed various inspections and meets customer requirements, packed and shipped.
Fabricated Snout for Galvanizing Line Product Name: Fabricated Snout for Galvanizing Line Material: 316L Size: 1895.5 * 437.1 * 714.8mm Unit weight: 689kg Production process: Static casting The picture shows the completed Fabricated Snout, made of 3.16L material, with dimensions of 1895.5 * 437.1 * 714.8mm and a weight of 689kg. Using static casting technology, subsequent machining is completed. The Fabricated Snout is mainly used in zinc pots for galvanizing lines and requires good corrosion resistance. Our company specializes in producing equipment such as sinking rollers, stabilizing rollers, three roller-six arm assembly for galvanizing lines. This batch of Fabricated Snouts has passed various inspections and has been packed and shipped.
Charging Fixtures Assembled with Base Tray, Cross Beams, Post, Core Shaft Product Name: Cross Beam, Post, Core Shaft Material: 1.4849 Size: 490 * 30 * 36mm/365 * 40 * 65mm/281 * 25 * 25mm/40 * 725 Single weight: 0.5~2kg Production process: precision casting The picture shows a batch of Base Tray, Cross Beams, Post, Core Shaft, etc. that have completed inspection. The material is 1.4849, and the size specifications are 490*30*36mm/365*40*65mm/281*25*25mm/40*725mm, with a weight of 0.5-2kg. Adopting the silica sol precision casting process, it is assembled and used together with the bottom tray, middle grate, and column. Our company specializes in producing various heat treatment fixtures, material baskets, trays, etc., which are used to hold heat-treated workpieces. The customer has long-term orders for various specifications of pallet tooling, which have been inspected and qualified in all aspects, and have been packed and shipped.
Intermediate Grid by Investment Casting Product Name: Intermediate Grid Material: 1.4852 Size: 442 * 599 * 30mm/⌀ 24 * 539mm Unit weight: 14kg/1.1kg Production process: precision casting The picture shows a batch of intermediate grids and columns that have been inspected, with a material of 1.4852, dimensions of 442 * 599 * 30mm/24 * 539mm, and a weight of 14kg/1.1kg. Adopting the silica sol precision casting process, it is assembled and used together with the bottom tray, middle grate, and column to hold heat-treated workpieces. Our company specializes in producing various heat treatment fixtures, material baskets, pallets, etc. Customers have long-term orders for various specifications of pallet fixtures, which have been inspected and qualified in all aspects and have been packed and shipped.
Centrifugal Casting Furnace Roller by Hexin Product Name: Roller Material: 1.4832 Size: Φ240*3800mm Unit weight: 304kg The picture shows a batch of rollers produced this month, with dimensions of Φ 240 * 3800mm, material of 1.4832, weight of approximately 304kg, using static casting and centrifugal casting, and later machined. Excellent quality, passed various inspections and meets customer requirements, packed and shipped.

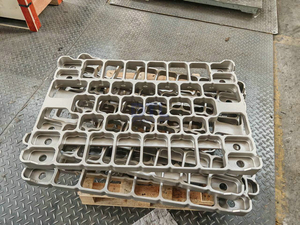

Cast Heat Treatment Fixtures Nickel Alloy 1.4849 Product Name: Heat Treatment Fixture Material: 1.4849 Size: 1030 * 610 * Hmm Single weight: 76.3kg/1.4kg/4.5kg, etc Production process: precision casting The picture shows a batch of heat treatment fixtures that have been inspected, including material trays, load-bearing beams, columns, core shafts, and other workpieces. The material is 1.4849 and the size specification is 1030 * 610 * Hmm. It adopts silica sol precision casting technology.

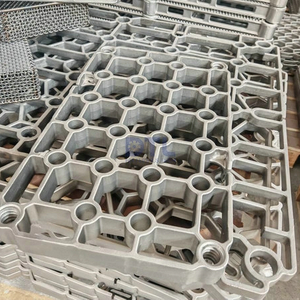

Cast Heat Treatment Alloy Cast Basket Product Name: Cast Heat Treatment Alloy Cast Basket Material: 1.4849/1.4841 Size: 1500x900x50mm/900x1200x250mm Unit weight: 114kg/142kg Production process: precision casting The picture shows a batch of pallets and material basket fixtures that have completed inspection, with materials of 1.4849/1.4841, dimensions of 1500x900x50mm/900x1200x250mm, and a weight of 114kg/142kg. Adopting the silica sol precision casting process, the material basket is equipped with woven wire mesh, and the tray is mainly used for holding workpieces in the heat treatment furnace, and can also be used together with the material basket. Our company specializes in producing various heat treatment fixtures, material baskets, pallets, etc. Customers have long-term orders for various specifications of pallet fixtures, which have been inspected and qualified in all aspects and have been packed and shipped.

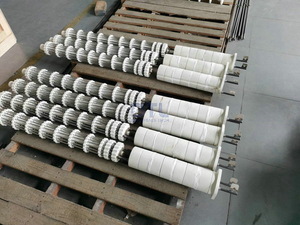

Ceramic Radiant Tube Heater Product Name: Electric Heating Radiant Tube Material: 1.4848/Cr20Ni80 Size: Φ128*1525mm Single weight: 48.1kg Production process: centrifugal casting The picture shows a batch of electric heating Radiant tubes produced this month, including the Radiant tube shell and electric heating core. The size of the Radiant tube is Φ 128 * 1525mm, the material is 1.4848, and the weight is about 28kg. The size of the electric heater is Ø 160 * 1610mm, the main material is Cr20Ni80, and the weight is about 20kg. The Radiant tube is mainly produced using centrifugal casting and static casting processes, while the electric heater is mainly welded as a finished product. After passing the trial assembly and inspection in all aspects, the product will be packaged and shipped separately, and the customer will assemble it themselves.
Centrifugal Casting Furnace Roller Product Name: Centrifugal Casting Furnace Roller Material: 35Cr18Ni24Si2 Size: Φ130*2850mm Unit weight: 169kg The picture shows a batch of Centrifugal Casting Furnace Roller produced this month, with dimensions of Φ 130 * 2850mm, made of 35Cr18Ni24Si2 material, weighing approximately 169kg. They are produced by static casting and centrifugal casting, and then machined. Excellent quality, passed various inspections and meets customer requirements, packed and shipped.
Spun Casting I Straight Radiant Tubes Product Name: Spun Casting I Straight Radiant Tubes Material: 1.4848/St 37 Size: Φ 320/Φ 200 * 1640mm Unit weight: 76kg Production process: centrifugal casting+precision casting+welding+machining The picture shows the straight tube radiant tube produced last week, with dimensions of Φ 320/Φ 200 * 1640mm, made of 1.4848/St 37 heat-resistant steel, and a unit weight of 76kg. The main body adopts centrifugal casting technology, the head is precision cast technology, and the overall welding is completed. The customer has ordered straight radiant tubes of different sizes and lengths, and after inspection, they meet the customer's requirements and have been shipped after passing the inspection.
